PROJECT · CUSTOM EQUIPMENT · BREWERIES + WINERIES
Custom Barrel Handler for Winery Operations
Barrel work is heavy, repetitive, awkward, and done thousands of times a season. That combination is what custom equipment is for.
Purpose-built barrel handling equipment, designed and fabricated in house by Miller 3 Engineering.
Project photography

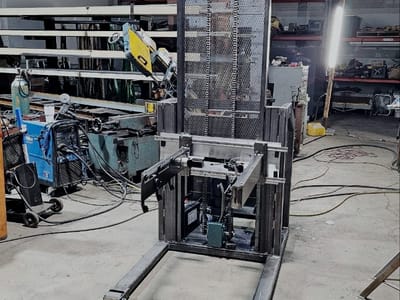

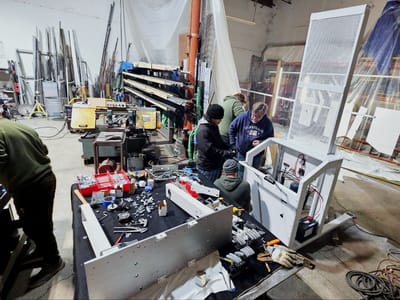

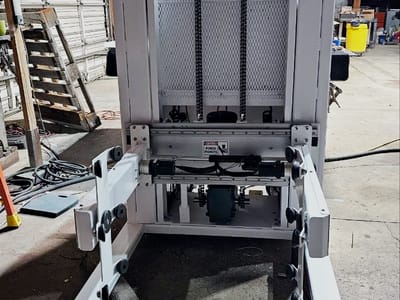

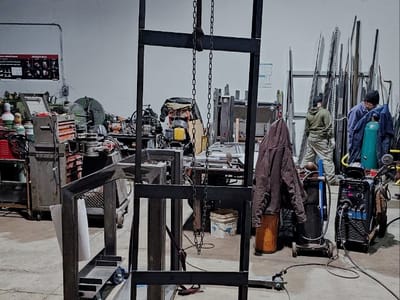

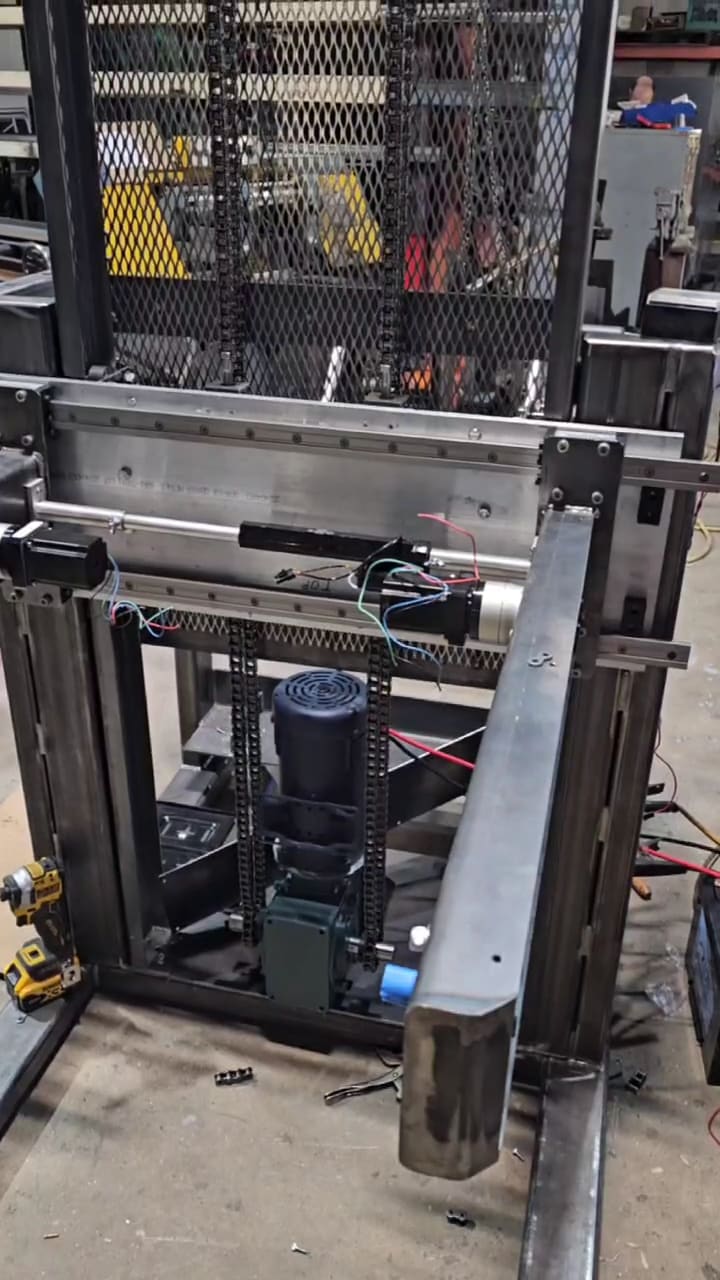

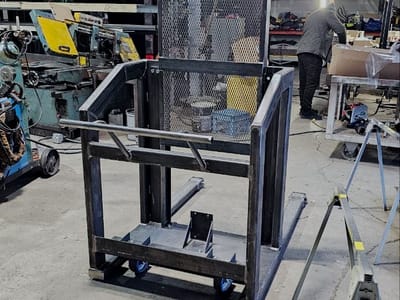

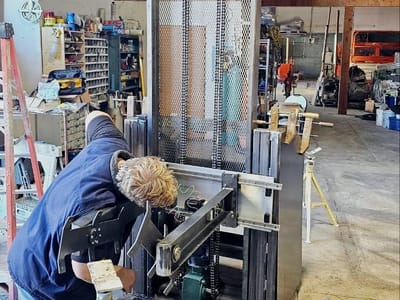

MAST AND BASE FRAMEM3E-PRJ-05 · FIG 01 SHOP BUILD — GUARDING AND SERVICESM3E-PRJ-05 · FIG 02 CARRIAGE FRAME — PRE-FINISHM3E-PRJ-05 · FIG 03 MAST SECTION — SHOP FLOORM3E-PRJ-05 · FIG 04 ASSEMBLY — SHOP BENCHM3E-PRJ-05 · FIG 05 LIFT COLUMN — COMMISSIONINGM3E-PRJ-05 · FIG 06 CARRIAGE AND GUARDED MASTM3E-PRJ-05 · FIG 07
A full barrel weighs more than the person moving it
Barrel work in a working cellar is one of the least automated jobs left in beverage production, and the reason is that barrels are awkward in every direction. They are heavy, round, stacked, and they have to be moved, rotated, topped, emptied, washed, and stacked again on a cycle that repeats through the whole season.
The costs of doing that manually are the predictable ones: back injuries and the workers compensation exposure that follows, slow cycle times during the periods when speed matters most, product loss from handling accidents, and the specific difficulty of finding people who want to do heavy repetitive lifting.
The costs of buying a generic machine are different: it does not fit your barrel size, your rack configuration, your aisle width, or your ceiling height.
What M3E brought to the build
| Capability | Applied here |
|---|---|
| Custom processing equipment design and build | Built to this operation's barrels, racks, and aisles |
| Automated material handling systems | Reducing manual handling of a heavy, repetitive load |
| Structural frames and machine bases | The frame that carries an eccentric, moving load |
| Pneumatic and actuator-driven systems | Actuation sized to the load and serviceable in place |
| Safety interlocks and emergency stop systems | Designed in, not added after a near miss |
| Prototype development and production-ready equipment | Building the questionable subassembly first and running it |
| Custom access systems integrated into machinery | Operator position and service access designed with the machine |
Our goal: reduce manual handling, improve consistency, and create predictable, operator-friendly systems.
Nobody specifies a barrel handler correctly on the first try
Equipment that interacts with an irregular, heavy, variable object is the hardest kind to get right on paper. Barrels differ in dimension. Racks are not perfectly square. Cellar floors slope for drainage. Operators do the job in a specific way that no drawing captures.
That is exactly the situation where design and fabrication have to sit close together. A detail that looked fine in the model gets built, tried, and changed the same week, because the shop is down the hall from the engineering.
Engineers and fabricators under one roof. No disconnect between design and fabrication.
Divisions
Related services
Industries
Industries this work runs in
Common questions
Do you build barrel handling equipment for other wineries?
We build custom processing equipment to order rather than selling a standard product line. If you have a barrel handling problem, the conversation starts with your barrels, your racks, your aisles, and your process, and the design follows from that. Design and fabrication are available nationwide; installation reaches 600 miles from Sacramento.
How is a custom machine priced against a catalog machine?
A catalog machine usually has a lower purchase price and a set of compromises you absorb for its whole service life: it does not quite fit your racks, it needs an operator workaround, or it handles one barrel format and you run two. Custom equipment costs more up front and fits. Which is correct depends on how far the catalog option is from your actual operation, and we will tell you honestly when a standard machine is the better buy.
Can you automate other cellar operations?
Custom equipment, automated material handling systems, and skid-mounted process systems are all defined capabilities, and we design equipment with automation in mind from day one: PLC coordination, sensor integration, pneumatic and actuator-driven systems, automated sequencing, and safety interlocks. Tell us the operation that is slowest or hardest on people and we will start there.
Can you install during crush?
The honest answer is that you should not want to. For seasonal operations, install work belongs in the off-season, with the design and fabrication schedule built backward from that date. We do execute inside live facilities as a matter of course, and prefabrication compresses the on-site window, but crush is the one calendar nobody should be optimistic about.
Do you do sanitary and washdown-rated equipment?
Yes. Sanitary equipment for washdown environments is a defined capability, along with corrosion-resistant materials, smooth surfaces, and minimal debris traps. Cellars are wet environments and equipment that is not built for that has a short life. Tell us your cleaning chemistry and we will select materials and finishes to it.
Which cellar task is hardest on your people?
Start there rather than with a machine you have already pictured.
